40W CO2 Laser Marking Machine

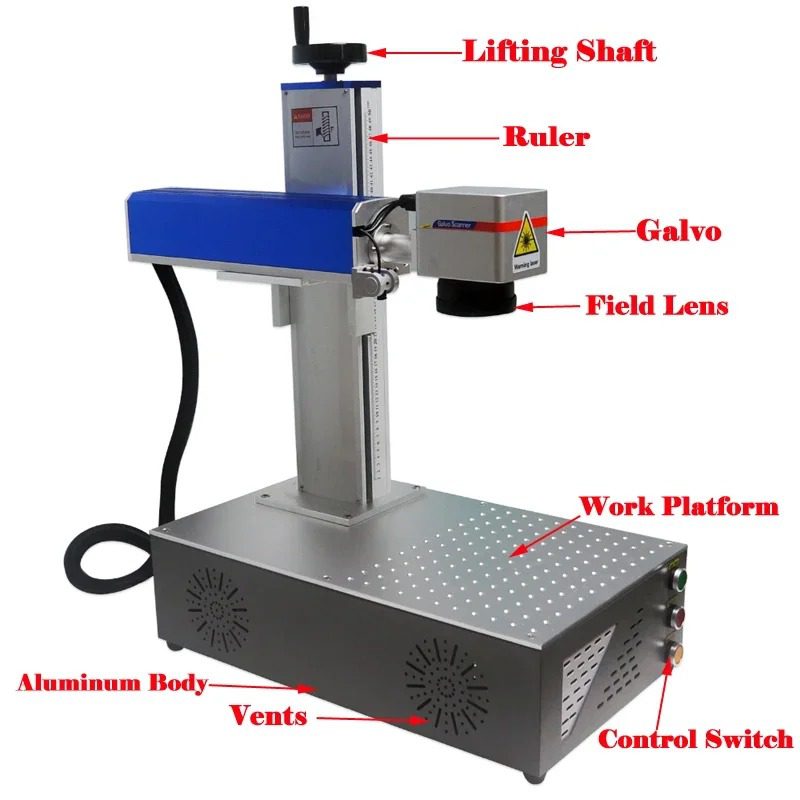

Description 1. Features Faster Engraving: The marking speed is 5 to 20 times faster than that of traditional laser engraving machines, with no noise produced during operation. Smaller Power Consumption: Compared to traditional models, power consumption is reduced by 5% to 10%, with an energy conversion rate of approximately 95%. Galvanometer: The equipment utilizes an imported high-speed servo motor scanning galvanometer and field lens, ensuring reliable, long-term, high-speed, and stable operation. Adjustable Marking Depth: The engraving process is precise and stable, allowing for easy adjustments to the engraving depth with high accuracy. Laser Tube: The laser power output remains stable, offering excellent spot quality, a long lifespan, and easy replacement of the laser tube. 2. Applicable materials Non-metallic materials: The CO2 laser marking machine can mark non-metallic materials, such as plastic, rubber, quartz, glass, and wood. Parameter of Laser Source Wavelength：10.6um Power Output：≥40W Power Stability：±5% Mode Quality：M²<1.2 Beam Waist Diameter：2.2±0.2mm Beam Divergence：<7 mrad(full angle) Beam Exit Height：65.5mm Polarization：>100：1 Linear, horizontal Operating Frequency：0-25KHz/0-100% Cooling： Air Input Voltage/Current：48VDC/12.5A Dimensions(mm)：357×93×145 Parameter of the Laser machine Laser medium: CO2 Laser wavelength: 10.64um Laser output average power: 40W Carving depth: ≤ 2mm Carving line speed: ≤ 7000mm/s Minimum line width: 0.1mm Minimum characters: 1mm Repeatability: ± 0.01mm Power demand: 110-220V / single phase / 50HZ / 3.5A Marking frequency: 0-20KHz adjustable Marking range: 110x 110mm   140×140/170×170/210×210 mm(Optional) Package includes 1 CO2 Laser Engraver machine 1 USB flash disk 1 Foot switch 1 Water pump 1 power cable 1 Data lines 1 Manual 1 Measuring ruler
